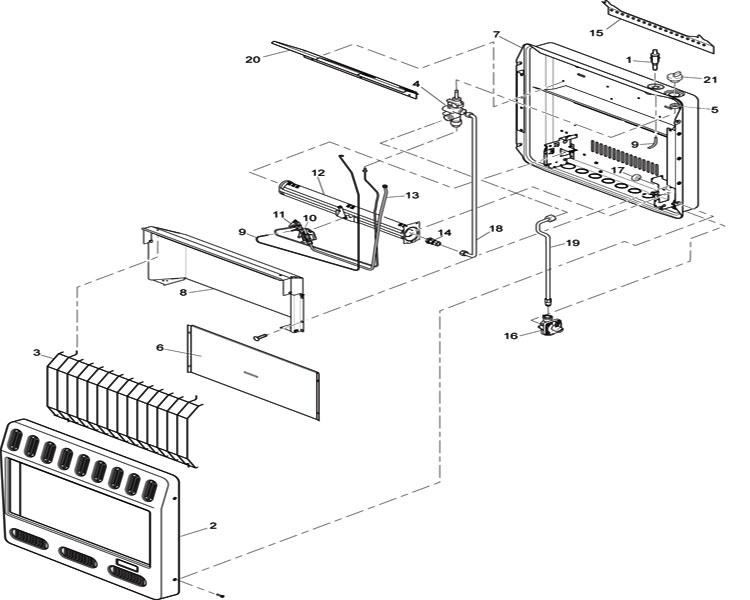

GP30A REDDY HEATER PARTS
| 1 | 097159-04 | Piezo Ignitor |
| 2 | 107676-01 | Front Panel |
| 3 | 103476-02 | Grill Guard |
| 4 | 100047-06 | Control Valve |
| 5 | 098508-01 | Valve Retainer Nut |
| 6 | 104658-01 | Heat Shield |
| 7 | ** | Cabinet |
| 8 | 107894-15 | Deflector Assembly |
| 9 | 098271-09 | Ignitor Cable |
| 10 | 098249-01 | Nut |
| 11 | 110803-02 | ODS/Pilot Assembly |
| 12 | 103447-06 | Burner |
| 13 | 099387-05 | Pilot Tubing |
| 14 | 103845-08 | Injector |
| 15 | 099066-02 | Mounting Bracket |
| 16 | 099415-18 | Gas Regulator |
| 17 | NJF 8C | Hex Nut |
| 18 | 103570-04 | Outlet Tubing |
| 19 | 103572-03 | Inlet Tubing |
| 20 | 118721-04 | Baffle |
| 21 | 098354-02 | Control Knob |
- GP30A Reddy Heaters were Manufactured by Desa prior to 2009.
- See DESA Owners manual for more specifications @ www.DesaTech.com
Service Manual for GP30A Reddy Heater
