R35B
- REDDY HEATERS R35B COMMON REPLACEMENT PARTS
- 102001-28 Motor
- 102482-01 Transformer Ignition Control
- PP203 Safety Control (replaces HA3003, 098205-01 & 098205-04)
- PP211 Spark Plug (replaces HA3012)
- PP213 Filter Kit(replaces M29612, M29633)
- M50876-02 Fuel Filter
- PP204 Rotor Kit (replaces HA3004)
- PP207 Nozzle(replaces HA3007)
- PP216 Photo Cell (replaces HA3019)
- HA1180 Pressure Gauge Kit

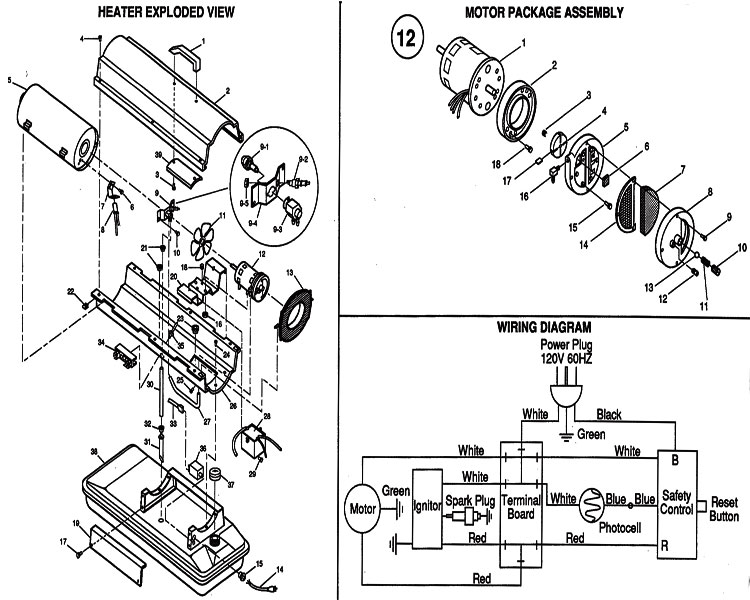

| 1 | M51104-01 | Handle |
| 2 | M50901-01AC | Shell Upper ( No Longer Available ) |
| 3 | M50589-01 | Screw Handle ( Use Replacement M11084-29 ) |
| 4 | M511084-27 | Screw #10-16 X 1/2" |
| 5 | M50785-06 | Combustion Chamber ( No Longer Available ) |
| 6 | M10908-2 | Screw #6-32 X 3/8" |
| 7 | M16660 | Bracket Photo Cell |
| 8 | M16656-4 | Photo Cell Assembly ( Use Replacement PP216 ) |
| 9 | **** | Burner Head Assembly |
| 9-1 | 079744-01 | Nozzle ( Use Replacement PP206 ) |
| 9-2 | M16741-18 | Ring Retainer |
| 9-3 | M29835-2 | Spark Plug ( Use Replacement PP212 ) |
| 9-4 | M29805 | Adapter Nozzle ( No Longer Available ) |
| 9-5 | M29613 | Bracket |
| 9-6 | M29824 | Nut 14MM |
| 10 | M11084-26 | Screw #10-12 X 3/8" ( No Longer Available ) |
| 11 | M30884 | Fan 7" Dia 1.437 |
| 12 | **** | Motor Package Assembly |
| 12-1 | M50843-02 | Motor |
| 12-2 | M6645 | Pump Body |
| 12-3 | M22009 | Insert, Rotor |
| 12-4 | M22456-1 | Rotor ( Use Replacement PP204 ) |
| 12-5 | M29608 | Cover, End Pump |
| 12-6 | M296323 | Filter, Lint |
| 12-7 | M29633 | Filter, Intake ( Use Replacement PP213 ) |
| 12-8 | M29609 | Filter End Cover |
| 12-9 | M12461-31 | Screw #10-32 X 1" |
| 12-10 | M27694 | Screw Adjusting ( Use Replacement PP217 ) |
| 12-11 | M10993-1 | Spring Relief ( Use Replacement PP217 ) |
| 12-12 | M22997 | Plug ( Use Replacement PP217 ) |
| 12-13 | M8940 | Ball. Steel 1/4" dia ( Use Replacement PP217 ) |
| 12-14 | M29612-01 | Filter Output ( Use Replacement PP213 ) |
| 12-15 | M12461-31 | Screw #10-32 X 1" |
| 12-16 | M50016 | Elbow, 90° ( No Longer Available ) |
| 12-17 | M8643 | Blade ( Use Replacement PP204 ) |
| 12-18 | FHPF3-4C | Screw #10-32 X 1/2" |
| 13 | M51105-01 | Guard Fan |
| 14 | M10813-81 | Power Cord ( No Longer Available ) |
| 15 | M11143-1 | Strain Relief Bushing |
| 16 | NTC-4C | Hex Nut ( No Longer Available ) |
| 17 | M11084-26 | Screw #10-12 X 3/8" ( No Longer Available ) |
| 18 | M50631 | Rubber Bumper ( No Longer Available ) |
| 19 | M50899-03AA | Side Cover ( No Longer Available ) |
| 20 | M51061-01 | Motor Bracket ( No Longer Available ) |
| 21 | M30865-02 | Transformer Lead Bushing |
| 22 | M25907 | Photo Cell Bushing |
| 23 | M11271-8 | Clip Nut |
| 24 | M50104-02 | Wire Bushing ( No Longer Available ) |
| 25 | M11084-26 | Screw #10-32 X 3/8" ( No Longer Available ) |
| 26 | M15823-37 | Screw #8 X 3/4" |
| 27 | M50902-01AC | Lower Shell |
| 28 | M29652-05 | Rubber Air Line |
| 29 | M50570-03 | Transformer, 5000 Volts ( Use Replacement 102482-01 ) |
| 30 | M11084-26 | Screw #10-32 X 3/8" ( No Longer Available ) |
| 31 | M29652-04 | Fuel Line |
| 32 | M50876-04 | Fuel Filter |
| 33 | M16841-16 | Red Wire ( No Longer Available ) |
| 34 | M13942-7 | Wire Nut ( small ) ( No Longer Available ) |
| 35 | M13942-5 | Wire Nut ( Medium ) ( No Longer Available ) |
| 36 | M13942-6 | Wire Nut ( Large ) ( No Longer Available ) |
| 37 | M50671-01 | Flame Out Control ( Use Replacement PP203 ) |
| 38 | M51027-06 | Fuel Cap ( Includes Gasket ) |
| 39 | M50811-04AA | Fuel Tank |
| 40 | M51108-01 | Heat Shield ( No Longer Available ) |
- Reddy Heaters R35B - 35,000 Btu/Hr.
- Kerosene Forced Air Heater
- R35B Heaters Heat up to 2200 sq. Ft.
- The 5 Gallon Tank Runs Approx. 12.0 Hours Per Tank
- R35B Master Heaters were Manufactured by Desa prior to 2009.
- See DESA Owners manual for more specifications @ www.DesaTech.com
Service Manual
