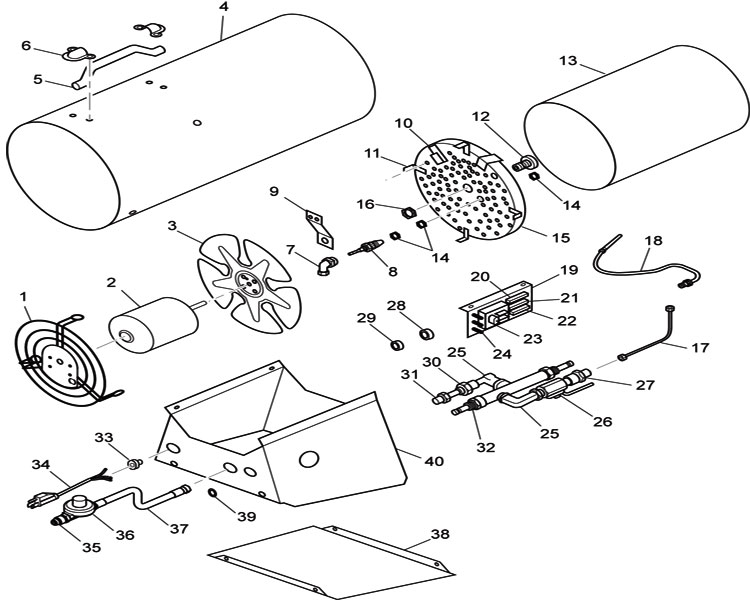

RLP125V

1	113919-01	Grille Assembly
2	113860-01	Motor Assembly
3	114160-01	Fan
4	114146-01	Outer Shell Cylinder Assembly, Orange
	114146-02	Outer Shell Cylinder Assembly, Red
	114146-03	Outer Shell Cylinder Assembly, Yellow
	114146-04	Outer Shell Cylinder Assembly, Black
5	097917-01	Handle
6	097918-01	Clip Handle Mounting
7	113931-01	Male Elbow Fitting
8	113885-02	Spark Plug, 1/8 (3.18 mm) Gap ( Use Replacement PP212 )
9	113889-02	High Limit Switch Control Assembly
10	113923-01	Thermocouple Bracket
11	113936-01	Thermocouple Spacer
12	113890-02	Orifice, LP Assembly
13	**	Middle Cylinder Assembly
14	113886-01	Nut, Spark Plug
15	113937-02	Flame Holder Assembly
16	113888-01	Nut orifice Mounting
17	114156-01	Fuel Tube Assembly
18	113884-01	Thermocouple
19	113924-01	Bracket Ignition Relay
20	113872-01	Terminal Board
21	114150-01	Steel Spacer
22	113875-01	Relay Assembly ( Use Replacement 103847-01 )
23	113867-01	Ignitor
24	114151-01	Spacer, PC Standoff Nylon
25	114153-01	Elbow Street Fitting
26	114159-01	Ball Valve, Variable Rate
27	113929-01	Female Connector Fitting
28	114152-01	Snap Bushing, 1 1/4 Nylon
29	114155-01	Snap Bushing, 3/4 Nylon
30	113869-01	Coupling Fitting
31	113868-01	Male Connector Fitting
32	113871-01	Valve ( No Longer Available )
33	113865-01	Strain Relief Bushing
34	113864-01	Power Cord ( Use Replacement 098219-38 )
35	113791-01	POL Excess Flow (6.97 kPa) ( Use Replacement 113818-01 )
36	113862-01	Regulator, 28 W.C."
37	113776-01	Hose Assembly, LP
38	114179-01	Access Panel
39	114158-01	Flat Washer
40	114149-01	Control Box Assembly
