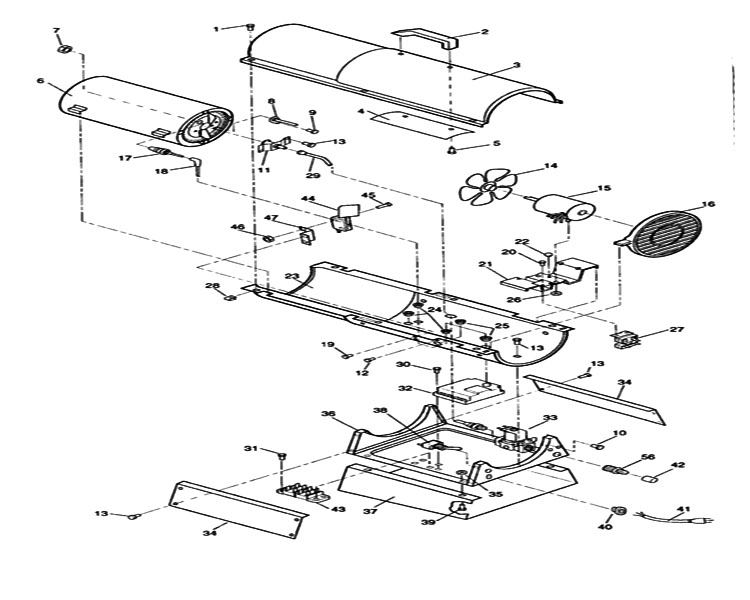

RLP150
| 1 | M15823-27 | Screw #10-16 x 1/2" ( No Longer Available ) |
| 2 | M51104-01 | Handle |
| 3 | 098511-114 | Upper Shell |
| 4 | M51108-01 | Heat Shield ( No Longer Available ) |
| 5 | M11084-29 | Screw #10-16 x 3/4" |
| 6 | 098512-04 | Combustion Chamber |
| 7 | M29824 | Nut 14mm |
| 8 | M51580-01 | Flame Sensor |
| 9 | M10908-2 | Screw #6-32 x 3/8" |
| 10 | M11084-26 | Screw #10-16 x 3/8" ( No Longer Available ) |
| 11 | 078980-01 | Nozzle Assembly ( Includes Bracket and Retainer Ring ) |
| 12 | M11084-38 | Screw #8-18 x 3/8" |
| 13 | M11084-27 | Screw #8-18 x 3/8 |
| 14 | M23147 | Fan ( No Longer Available ) |
| 15 | 099131-01 | Motor (Use Replacement 105336-01) |
| 16 | M51114-01 | Fan Guard |
| 17 | M29835 | Spark Plug ( Use Replacement PP212 ) |
| 18 | 078966-01 | Ignition Cable |
| 19 | M15823-27 | Screw #8-18 x 1/4" ( No Longer Available ) |
| 20 | M12461-13 | Screw #8-32 x 1/4" |
| 21 | 098138-02 | Motor Bracket Assembly |
| 22 | M50631 | Rubber Bumper ( No Longer Available ) |
| 23 | 098511-115 | Lower Shell |
| 24 | M25907 | Snap Bushing |
| 25 | 097776-01 | Shorty Bushing |
| 26 | NTC-4C | Hex Jam Nut ( No Longer Available ) |
| 27 | 098165-01 | Relay |
| 28 | M11271-8 | Clip Nut |
| 29 | M51569-01 | Fuel Tube |
| 30 | 079007-06 | Screw #6-20 x 7/8" |
| 31 | M15823-39 | Screw #8-15 x 1/2" |
| 32 | M51605-01 | D.S.I. Control |
| 33 | 079473-01 | Solenoid Valve |
| 34 | M51077-01AA | Side Cover ( No Longer Available ) |
| 35 | ** | Nut 1/4-20 |
| 36 | ** | Lower Shell Cradle |
| 37 | ** | Base |
| 38 | 098226-01 | On/Off Switch |
| 39 | ** | Bolt 1/4-20 x 3/8" |
| 40 | M11143-1 | Strain Relief Bushing |
| 41 | 099896-05 | Power Cord |
| 42 | 078978-01 | Sleeve Cap |
| 43 | M51584-01 | Terminal Board |
| 44 | 079147-01 | Air Switch Assembly |
| 45 | FHC00-6C | Screw #4-40 x 3/4" |
| 46 | NPC-00C | Nut 4-40 |
| 47 | ** | Air Switch Bracket |
| 48 | ** | Wire Assembly ( Black 10" ) |
| 49 | ** | Wire Assembly ( White 6" ) |
| 50 | ** | Wire Assembly ( Orange 14" ) |
| 51 | ** | Wire Assembly ( Black 6" ) |
| 52 | ** | Wire Assembly ( Black 8" ) |
| 53 | ** | Wire Assembly ( Black 15" ) |
| 54 | ** | Wire Assembly ( Red 14" ) |
| 55 | ** | Wire Assembly |
| 56 | M51572-02 | Male Connector |
| LPA3020 | Regulator and Hose Assembly ( Includes POL Adapter ) | |
| LPA1010 | Hose Assembly | |
| LPA4020 | Excess Flow POL Adapter ( Use Replacement 113818-01 ) | |
| HA1210 | Hang Up THermostat ( Use Replacement PP234 ) |
- RLP150 Reddy Heaters were Manufactured by Desa prior to 2009.
- See DESA Owners manual for more specifications @ www.DesaTech.com
Service Manual
