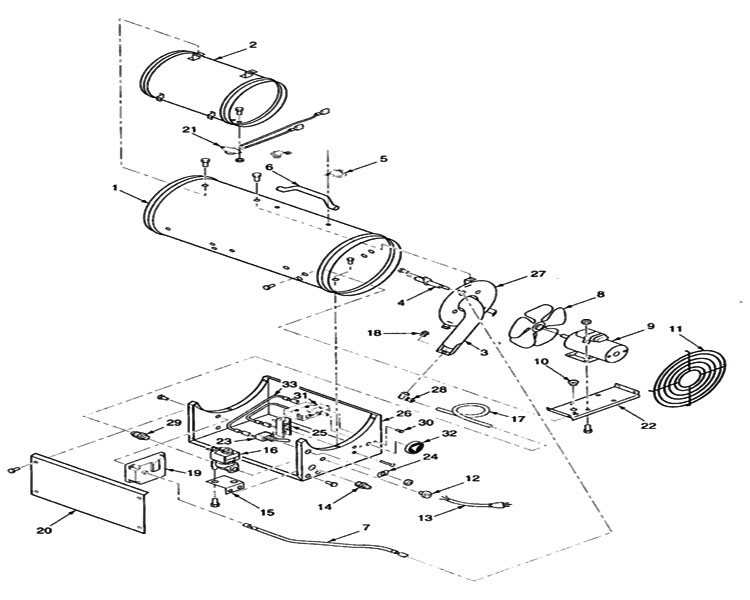

RLP375AT
| 1 | 100409-06 | Outer Shell Assembly (BLP375A) |
| 2 | 097847-01 | Combustion Chamber Assembly |
| 3 | 097849-01 | Burner Assembly |
| 4 | 097805-01 | Ignitor |
| 5 | 097918-01 | Cleat |
| 6 | 097917-01 | Handle |
| 7 | 097806-02 | Ignitor Cable ( No Longer Available ) |
| 8 | 097811-01 | Fan |
| 9 | 097802-01 | Motor |
| 10 | M50104-02 | Shorty Bushing ( No Longer Available ) |
| 11 | 097964-01AA | Fan Guard |
| 12 | M11143-1 | Strain Relief Bushing |
| 13 | 099896-05 | Cord Assembly |
| 14 | 097809-01 | Male Fitting |
| 15 | 097828-01 | Solenoid Bracket |
| 16 | 098201-01 | Solenoid Valve |
| 17 | 100145-01 | Fuel Tube |
| 18 | 099679-01 | Nozzle |
| 19 | M51605-02 | D.S.I. Control |
| 20 | 097965-01AA | Side Cover |
| 21 | 101732-03 | Thermal Switch Kit |
| 22 | 097829-02 | Motor Mount |
| 23 | 098226-01 | On/Off Switch |
| 24 | 098827-01 | Compression Fitting |
| 25 | 099125-01 | Terminal Board |
| 26 | 097966-09AA | Base |
| 27 | 097848-01 | Rear Plate Assembly |
| 28 | 100146-01 | Elbow Fitting |
| LPA1020 | Hose | |
| LPA2020 | Regulator | |
| LPA4020 | Fuel Gas Connector ( Use Replacement 113818-01 ) | |
| HA1210 | Thermostat ( Use Replacement KT-121 ) |
- Reddy Heaters RLP375AT - 375,000 Btu/Hr.
- Propane/LP Forced Air Heater
- RLP375AT Heaters Heat up to 8800 SQ. FT
- Minimum take size 100lb
- RLP375AT Reddy Heaters were Manufactured by Desa prior to 2009.
- See DESA Owners manual for more specifications @ www.DesaTech.com
