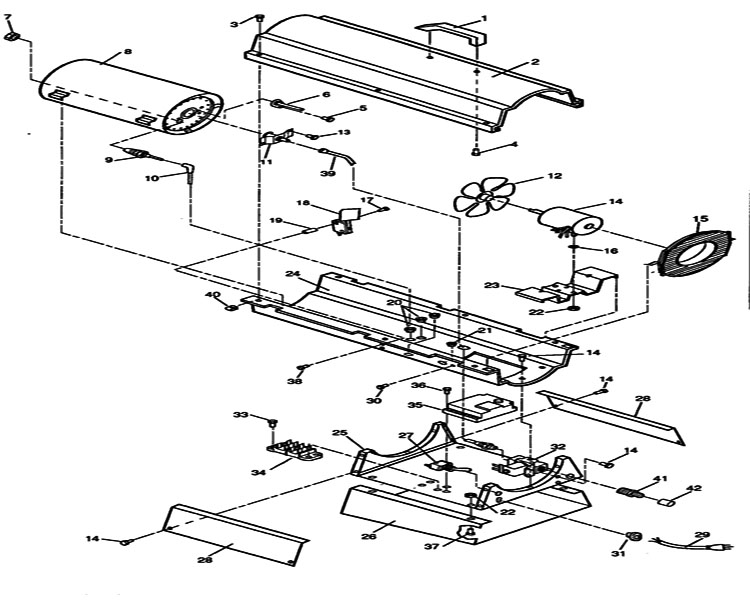

RLP45
| 1 | M51104-01 | Handle |
| 2 | 098511-36 | Upper Shell ( No Longer Available ) |
| 3 | M15823-27 | Screw #10-16 x 1/2" ( No Longer Available ) |
| 4 | M11084-29 | Screw #10-16 x 3/4" |
| 5 | M10908-2 | Screw #6-32 x 3/8" |
| 6 | M51580-01 | Flame Sensor |
| 7 | M29824 | Nut 14mm |
| 8 | 098512-24 | Combustion Chamber |
| 9 | M29835-2 | Spark Plug ( Use Replacement PP212 ) |
| 10 | 078966-01 | Ignition Cable |
| 11 | 078980-03 | Nozzle Assembly ( Includes Bracket and Retaining Ring ) |
| 12 | M50893-01 | Fan |
| 13 | M511084-26 | Screw #10-16 x 3/8" |
| 14 | 079054-01 | Motor |
| 15 | 078975-01 | Fan Guard |
| 16 | M51161-01 | Rubber Washer |
| 17 | 079083-04 | Screw #4/40 x 5/8" |
| 18 | 079147-02 | Air Switch Assembly |
| 19 | 079082-01 | Tapper Spacer |
| 20 | M25907 | Snap Bushing |
| 21 | M50104-02 | Shorty Bushing ( No Longer Available ) |
| 22 | NTC-4C | Hex Lock Nut ( No Longer Available ) |
| 23 | 098138-01 | Motor Bracket |
| 24 | 098511-97 | Lower Shell |
| 25 | 097047-01AA | Lower Shell Cradle |
| 26 | 097903-01 | Base |
| 27 | 098226-01 | On/Off Switch |
| 28 | M50899-03AA | Side Cover ( No Longer Available ) |
| 29 | 079009-01 | Power Cord |
| 30 | M11084-38 | Screw #8-18 x 3/8" |
| 31 | M11143-1 | Strain Relief Bushing |
| 32 | 079473-02 | Solenoid Valve Assembly |
| 33 | M15823-39 | Screw #8-15 x 1/2" |
| 34 | M51584-01 | Terminal Board |
| 35 | M51605-01 | D.S.I. Control |
| 36 | 079007-06 | Screw #6-20 x 7/8" |
| 37 | HC4-3C | Screw 1/4-20 x 3/8" ( No Longer Available ) |
| 38 | 079083-01 | Screw #4-40 x 1/4" |
| 39 | M51539-02 | Fuel Tube Assembly |
| 40 | M11271-3 | Clip Nut |
| 41 | M15572-01 | Male Connector |
| 42 | 078978-02 | Sleeve Cap |
| 43 | ** | Wire Assembly ( Orange 11 1/2" ) |
| 44 | ** | Wire Assembly ( Red 6" ) |
| 45 | ** | Wire Assembly ( Black 10" ) |
| 46 | ** | Wire Assembly ( Green/Yellow 6" ) |
| 47 | ** | Wire Assembly ( Black 15" ) |
| 48 | ** | Wire Assembly ( Black 6" ) |
| 49 | ** | Wire Assembly ( Black 8" ) |
| 50 | ** | Wire Assembly ( White 6" ) |
| 079060-01 | Regulator and Hose Assembly ( Use Replacement LPA3020 | |
| 079058-01 | Regulator | |
| 079059-01 | Hose Assembly | |
- RLP45 Reddy Heaters were Manufactured by Desa prior to 2009.
- See DESA Owners manual for more specifications @ www.DesaTech.com
