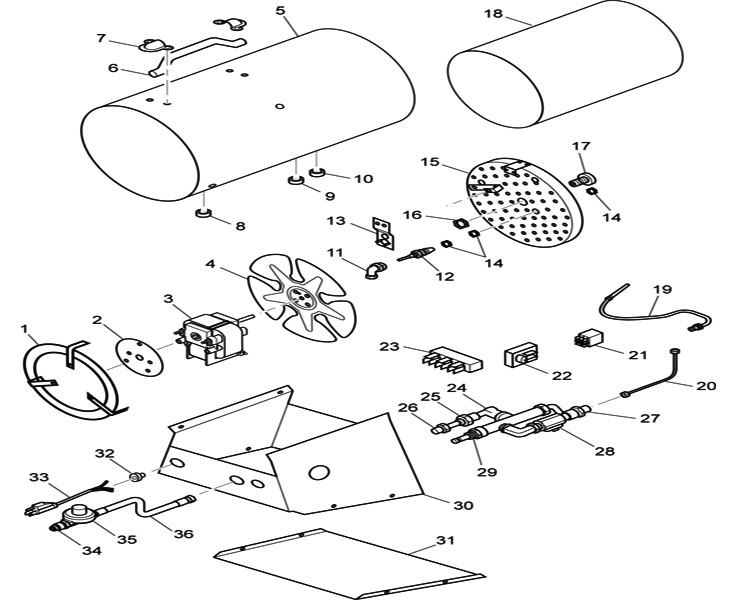

RLP55V



1 113878-01 Grille Assembly
2 115772-01 Motor Mounting Bracket
3 113880-01 Motor Assembly
4 113881-01 Fan
5 113882-01 Outer Cylinder, Red
113882-02 Outer Cylinder, Orange
113882-03 Outer Cylinder, Yellow
113882-04 Outer Cylinder, Black
6 097917-01 Handle
7 097918-01 Clip Handle Mounting
8 113883-01 Snap Bushing, 5//8
9 118651-01 Universal Bushing
10 114162-01 Snap Bushing, 1/2
11 113887-01 Male Elbow Fitting
12 113885-01 Spark Plug
13 113889-01 High Limit Switch Control Assembly
14 113886-01 Nut, Spark Plug
15 113892-01 Flame Holder Assembly
16 113888-01 Nut orifice Mounting
17 113890-01 Orifice, LP Assembly
18 ** Middle Cylinder Assembly
19 113884-01 Thermocouple
20 113877-01 Fuel Tube Assembly
21 113875-01 Relay Assembly ( Use Replacement 103847-01 )
22 113867-01 Ignitor
23 113872-01 Terminal Board
24 113870-01 Elbow Street Fitting
25 113869-01 Coupling Fitting
26 113868-01 Male Connector Fitting
27 113876-01 Female Connector Fitting
28 113873-01 Ball Valve
29 113871-01 Valve ( No Longer Available )
30 113866-01 Control Box Assembly
31 113863-01 Bottom Panel
32 113865-01 Strain Relief Bushing
33 113864-01 Power Cord ( Use Replacement 098219-38 )
34 113791-01 POL Excess Flow 1/4 MPT ( Use Replacement 113818-01 )
35 113862-01 Regulator, 28 W.C."
36 113776-01 Hose Assembly, LP



Service Manual
