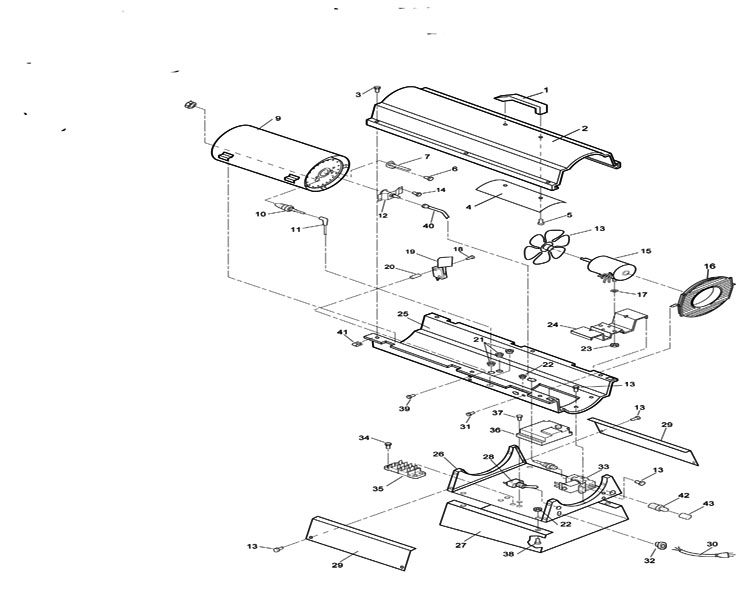

RLP80
| 1 | M51104-01 | Handle |
| 2 | 098511-36 | Upper Shell (RLP80) ( No Longer Available ) |
| 3 | 100647-01 | Screw, #10-16 x 1/2 " ( Use Replacement M15823-27 ) |
| 4 | M51108-01 | Heat Shield ( No Longer Available ) |
| 5 | M11084-29 | Screw, #10-16 x 3/4 " |
| 6 | M10908-2 | Screw, #6-32 x 3/8 " |
| 7 | M51580-01 | Flame Sensor |
| 8 | M29824 | Nut, 14MM |
| 9 | 098512-09 | Combustion Chamber |
| 10 | HA3013 | Spark Plug ( Use Replacement PP212 ) |
| 11 | 078966-01 | Ignition Cable |
| 12 | 078980-02 | Nozzle Assembly (Includes Bracket & Retaining Ring) |
| 13 | M51107-01 | Fan |
| 14 | M11084-26 | Screw, #10-16 x 3/8 " ( No Longer Available ) |
| 15 | 079054-01 | Motor |
| 16 | 078975-01 | Fan Guard |
| 17 | M51161-01 | Rubber Washer |
| 18 | 079083-04 | Screw, #4-40 x 5/8 " |
| 19 | 079147-01 | Air Switch Assembly |
| 20 | 079082-01 | Tapped Spacer |
| 21 | M25907 | Snap Bushing |
| 22 | M50104-02 | Shorty Bushing ( No Longer Available ) |
| 23 | NTC-4C | Hex Lock Nut ( No Longer Available ) |
| 24 | 101205-01 | Motor Bracket ( No Longer Available ) |
| 25 | 098511-97 | Lower Shell (RLP80) |
| 26 | 079047-01AA | Lower Shell Cradle |
| 27 | 097903-01 | Base |
| 28 | 098226-01 | On/Off Switch |
| 29 | M50899-03AA | Side Cover ( No Longer Available ) |
| 30 | 098219-10 | Power Cord |
| 31 | M11084-38 | Screw, #8-18 x 3/8 " |
| 32 | M11143-1 | Strain Relief Bushing |
| 33 | 079473-02 | Solenoid Valve Assembly |
| 34 | M15823-39 | Screw, #8-15 x 1/2 " |
| 35 | M51584-01 | Terminal Board |
| 36 | M51605-01 | D.S.I. Control |
| 37 | 079007-06 | Screw, #6-20 x 7/8 " |
| 38 | HC4-3C | Screw, #1/4-20 x 3/8 " ( No Longer Available ) |
| 39 | 079083-01 | Screw, #4-40 x 1/4 " |
| 40 | M51569-02 | Fuel Tube Assembly |
| 41 | M11271-8 | Clip Nut |
| 42 | M51572-01 | Male Connector |
| 43 | 078978-02 | Sleeve Cap |
| 44 | * | Wire Assy. (Orange, 11 1/2) " |
| 45 | * | Wire Assembly (Red, 6) " |
| 46 | * | Wire Assembly (Black, 10) " |
| 47 | * | Wire Assy. (Green/Yellow, 6) " |
| 48 | * | Wire Assembly (White, 6) " |
| 49 | * | Wire Assembly (Black, 15) " |
| 50 | * | Wire Assembly (Black, 8) " |
| 51 | * | Wire Assembly (Black, 6) " |
| LPA3010 | Regulator & Hose Assembly ( Use Replacement LPA3020 ) | |
| LPA1000 | Hose Assembly | |
| LPA2080 | Regulator ( Use Replacement LPA3020 ) | |
| HA1210 | Thermostat ( Use Replacement PP234 ) | |
- RLP80 Reddy Heaters were Manufactured by Desa prior to 2009.
- See DESA Owners manual for more specifications @ www.DesaTech.com
Service Manual
